Z SERIES

ZV CLASSIC

50 / 55 / 58

Rigidity and reliability with no limits in 3 axis centers

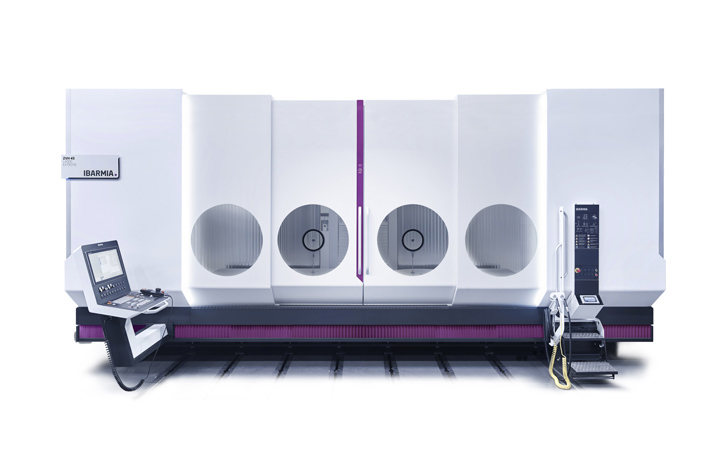

ZV Classic

3 Axis

MANUFACTURING TECHNOLOGY

Moving column centers for 3 axis milling operations or in combination with horizontal axis rotary tables, for works along the table or in pendulum cycle. Medium speed ranges for great material removals.

  • ZV Classic head

    Belt and pulley transmision:
    high torque with the highest reliability
    Uo to 821 Nm



Models

By construction size

Larger columns for even more
powerful spindles.

Ibarmia, centros de mecanizado cnc, mecanizado 3 ejes, alto par, fresado 3 ejes, mecanizado vertical 3 ejes

Size 5

50 / 55 / 58 models

Ibarmia, centros de mecanizado cnc, mecanizado 3 ejes, alto par, fresado 3 ejes, mecanizado vertical 3 ejes

Tool holder

SK 50 BT 50 HSK 100

Axis travels

X • Up to 12.000 mm / Y • 600 - 1000 mm
Z • 800 mm

Spindle

Up to 43 kW - 6000 rpm

Everlasting technology

IBARMIA launched the firts CLASSIC model in 1986, and the fundamental concepts have not been modified: we continue using cast iron to build the moving structures, the main spindles are provided with generous bearings to ensure the maximum rigidity and material removing capacity...

Industries

  • AEROSPACE

    AEROSPACE

  • AUTOMOTIVE

    AUTOMOTIVE

  • OIL & GAS

    OIL & GAS

  • FERROCARRIL

    FERROCARRIL

  • VALVES & PUMPS

    VALVES & PUMPS

  • MOLDS & DIE

    MOLDS & DIE

  • MACHINERY

    MACHINERY

  • ENERGY

    ENERGY

  • CRANES

    CRANES
