T SERIES

T EXTREME

36 / 30 / 22 / 16 / 12

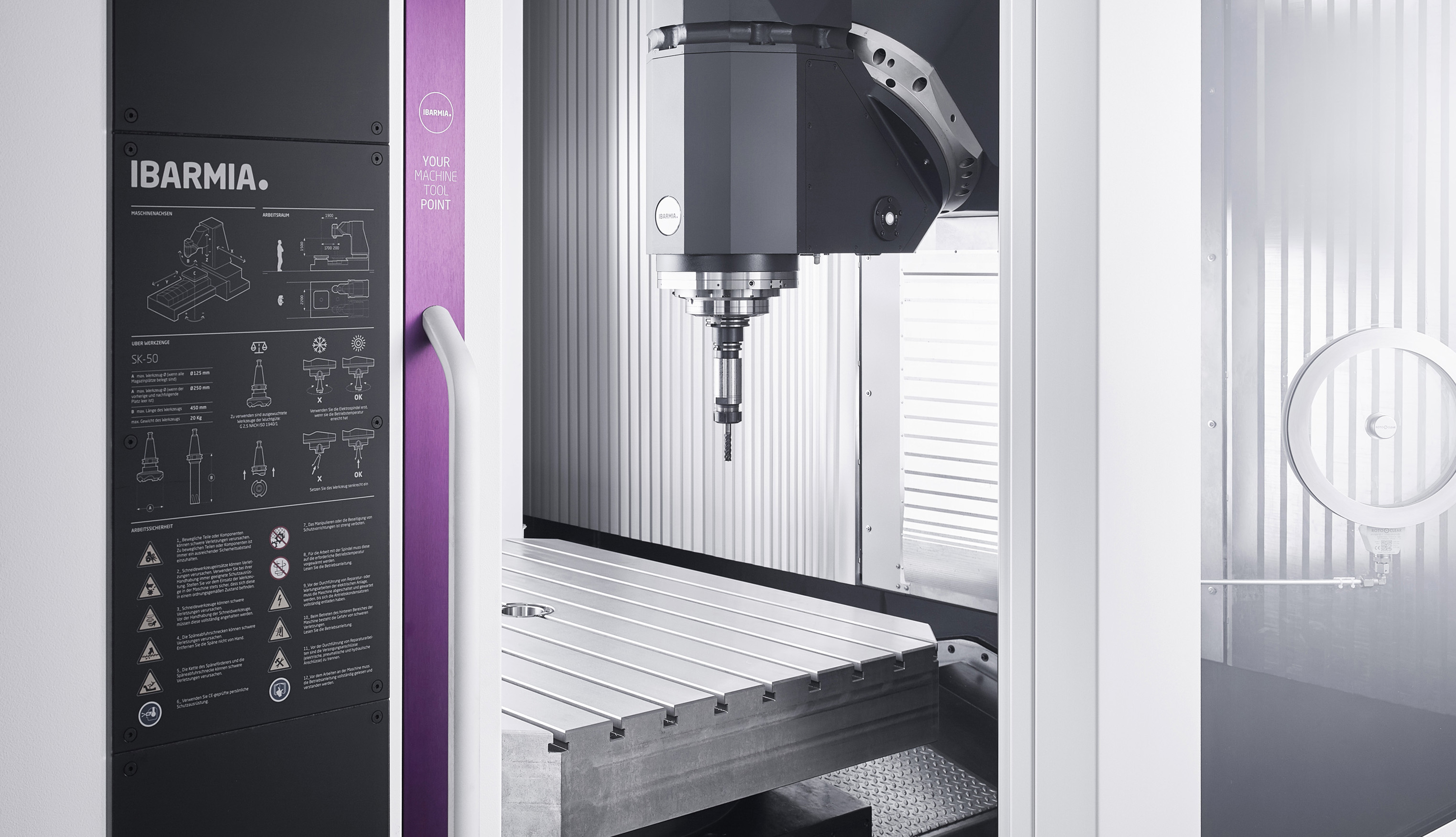

High performance 5 axis universal machining centers

T Extreme

5 Axis

MANUFACTURING TECHNOLOGY

Power, accuracy and dynamics combined with excellent chip evacuation, ergonomics and intelligent production functions.

Spindle tapers
SK-50 • BT-50 • HSK 100 • CAPTO 8

Axis travels
X • From 1200 to 3600 mm / Y • From 1100 to 2300 mm
Z • From 1000 to 1900 mm
B • -15º/+195º / A • -45º/+135º

Spindle
Up to 84 kW - 12.000 rpm

Spindle heads

Two available models:
THC / THR

Continuous tilting heads with torque motor and
direct measuring systems in the axes.

THC_ B axis head

Maintain the same tool center point across the full range
-15º/+195º

THR_ A axis head

Fork type spindle head ideal for negative angles
-45º/+135º



Models

Capacity by size

T36

Table size
1.600 x 1.600 mm
Maximum load capacity
25.000 Kg

T30

Table size
1250 x 1600 mm
Maximum load capacity
20.000 Kg

T22

Table size
1250 x 1250 mm
Maximum load capacity
10.000 Kg

T16

Table size
1000 x 1000 mm
Maximum load capacity
6000 Kg

T12

Table size
800 x 800 mm
Maximum load capacity
4000 Kg



T EXTREME

Main advantages

Multi-face machining

Accurate tilting heads and heavy-duty rotary tables allow machining various angles of complex pieces in one set up.

Machine Automation:
Pallet management

Various pallet changing and storage systems adapted to each size and loads for an effective production system.

Machine Automation:
Advanced tool management

Automatic tool changing solutions for special heads and their tools, angle heads and large size tools.

Industries

  • AEROSPACE

    AEROSPACE

  • AUTOMOTIVE

    AUTOMOTIVE

  • OIL & GAS

    OIL & GAS

  • FERROCARRIL

    FERROCARRIL

  • VALVES & PUMPS

    VALVES & PUMPS

  • MOLDS & DIE

    MOLDS & DIE

  • MACHINERY

    MACHINERY

  • ENERGY

    ENERGY

  • CRANES

    CRANES
