T SERIES

UNIVERSAL 5 AXIS MACHINING CENTERS

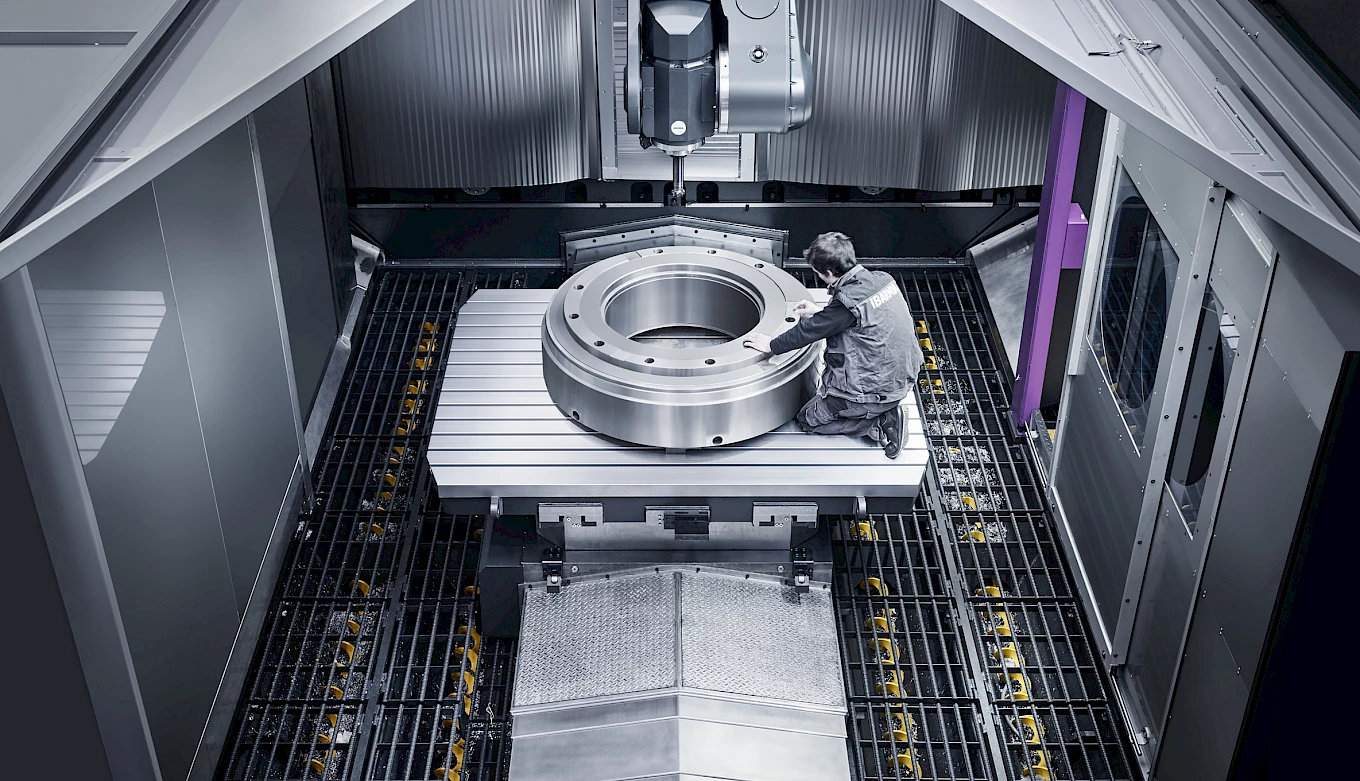

For large diameters up to ø3600 mm and automatic pallet changing

Universal machining centers for 5 axis machining of big diameter parts focused on high productivity by integrating multitasking technology and automation systems.

MACHINING RANGE

  • Extra-long parts
  • Large diameter parts
  • Extra-large diameter parts



The Range

By Manufacturing Technology

T SERIES

CREATE
YOUR OWN MACHINE



Five machine sizes

36 /30 /22 /16 /12

With the possibility to adapt “in-between” sizes

T36

Maximum swing diameter
ø 3600 mm
Maximum part height
h 2150 mm
Maximum load capacity
25.000 Kg

T30

Maximum swing diameter
ø 3000 mm
Maximum part height
h 1950 mm
Maximum load capacity
20.000 Kg

T22

Maximum swing diameter
ø 2200 mm
Maximum part height
h 1750 mm
Maximum load capacity
10.000 Kg

T16

Maximum swing diameter
ø 1600 mm
Maximum part height
h 1450 mm
Maximum load capacity
6.000 Kg

T12

Maximum swing diameter
ø 1200 mm
Maximum part height
h 1250 mm
Maximum load capacity
4.500 Kg



Spindle heads

Two available models:
THC / THR

Continuous tilting heads with torque motor and
direct measuring systems in the axes.

THC_ B axis head

Maintain the same tool center point across the full range
-15º/+195º

THR_ A axis head

Fork type spindle head ideal for negative angles
-45º/+135º



T SERIES

Main advantages

Automation

Various systems and automation levels for an optimal adaptability to each budget and requirement.

Go to Automation Systems

Structures with maximum rigidity

Designed and calculated using Finite Element Methods to maximize the performance throughout the full lifetime of the machine.

Spindles

HSK-100 spindles with 84 kW power and high speeds. The most advanced technology.

Large swing diameters: up to ø3600 mm

Up to 22.500 kg max loads for milling operations and 16.000 kg for turning operations.

Tool magazines up to 360 positions

Large capacity tool magazines situated outside the working area and separated from the main structure so its movements do not affect the machine.

Customized tool magazines

Robot operated tool and head magazines ideal for combinations of tools, special heads, extra large tools (boring tools, angle heads, U axis heads etc…)

You decide

“Ibarmia makes the machine following your needs”

Contact with IBARMIA for further information
