ZLS5_70.08 EXTREME

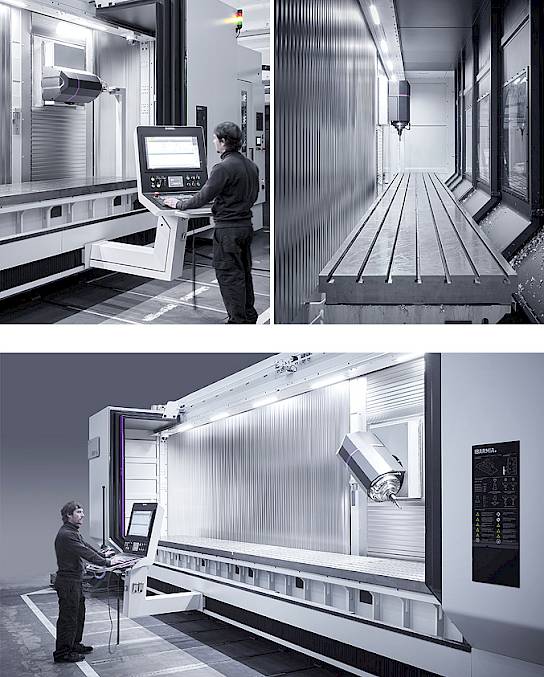

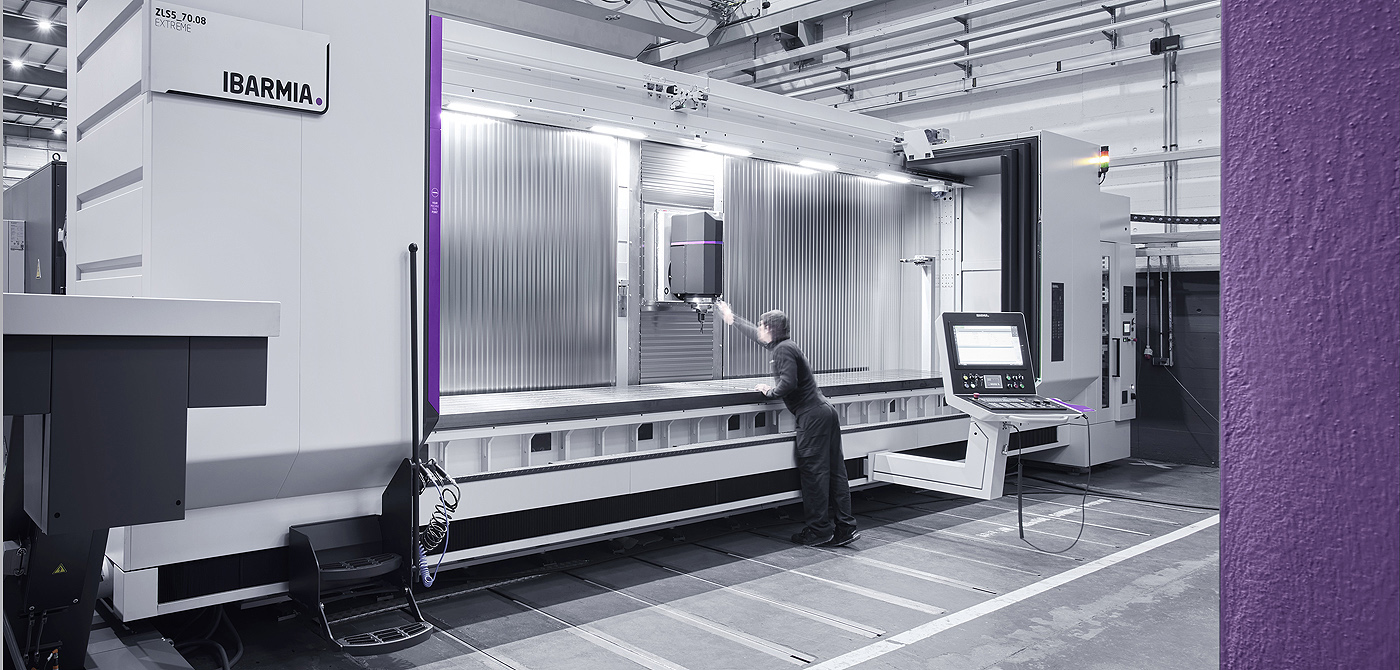

The ZLS5_70.08 EXTREME launches the new GEN6 generation from IBARMIA in a long-bed configuration for the press brake tooling sector. Travels of 7000 mm in X, 800 mm in Y plus 250 mm extra for tool change and 1100 mm in Z, together with a continuous ±115° tilting head, make it possible to machine long tools in a single set-up with full access along the part. This machine is designed to machine long tools in a single setup, ensuring high accuracy and full accessibility along the entire part.

At its core, a high-power electrospindle with HSK A100 interface delivers up to 84 kW, 452 Nm and a 30–12000 rpm speed range, supported by a 134-tool HSK A100 magazine that enables fast tool changes and continuous production. Through-spindle coolant at 70 bar, external coolant at 12 bar and a 2000 l filtration system keep cutting conditions under control in demanding, long machining cycles.

To ensure consistent quality over the full 7000 mm stroke, the ZLS5_70.08 EXTREME features HEIDENHAIN absolute scales on all axes, BLUM laser tool measurement, tool identification and a workpiece probe. Everything is managed by a SIEMENS SINUMERIK One CNC with 24" touch screen, Digital Twin, teleservice and a three-camera monitoring system, together with a comfort package, screw and hinged-belt chip evacuation and preparation for the customer’s magnetic clamping system. A GEN6 platform ready to grow with the needs of press brake tooling production.
